Ultra-thin toilet water tank ，The water tank width is 500mm, which meets the requirements of most customers;
The tank body is made of HDPE plastic and blow-molded, which can be guaranteed to be undamaged for 50 years.
Item No :
GLY-G11TOrder(MOQ) :
100 PCSPayment :
TT/LCProduct Origin :
Guangdong ChinaColor :
Blue, Black......Shipping Port :
NanshaLead Time :
25 daysWeight :
15.8kgDimension :

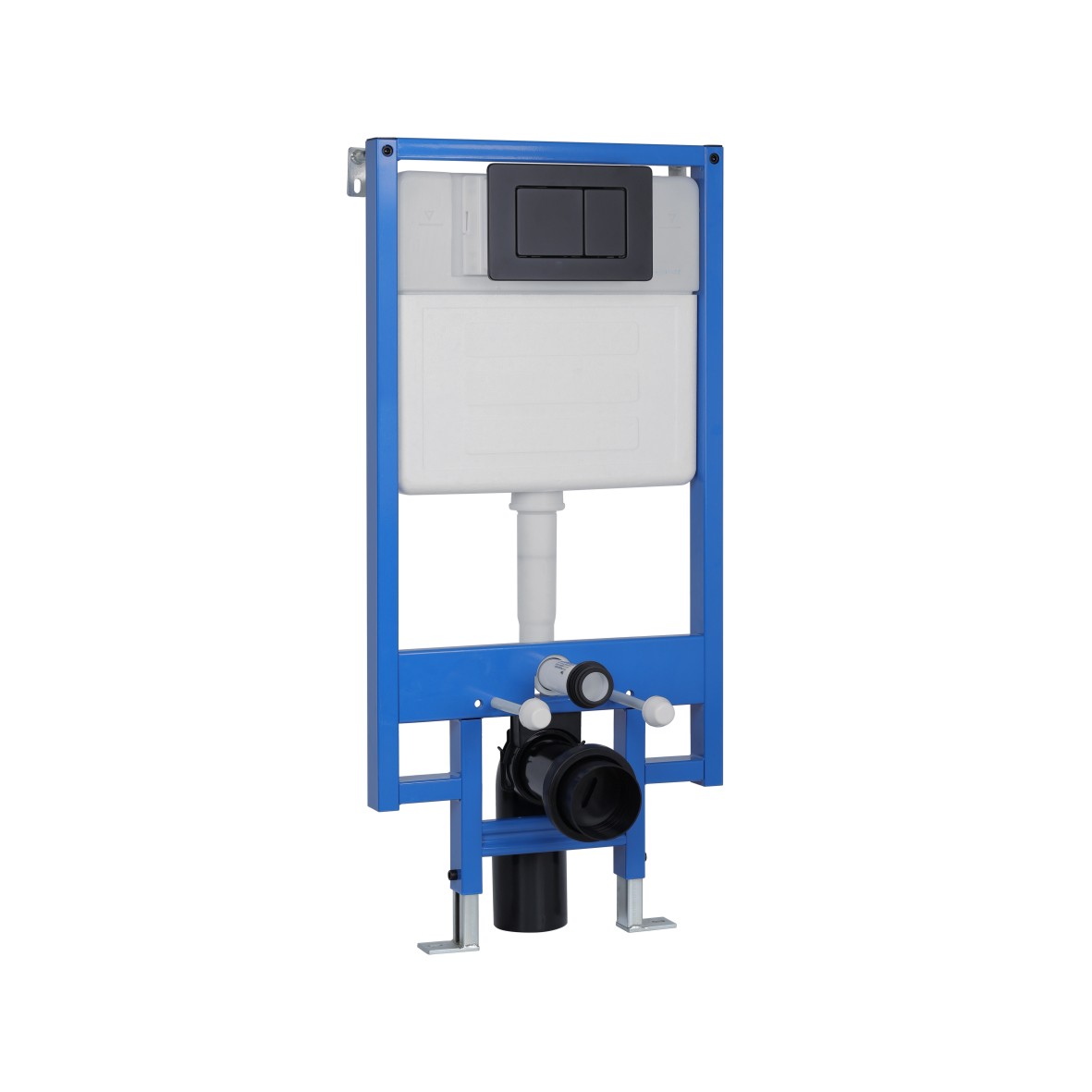

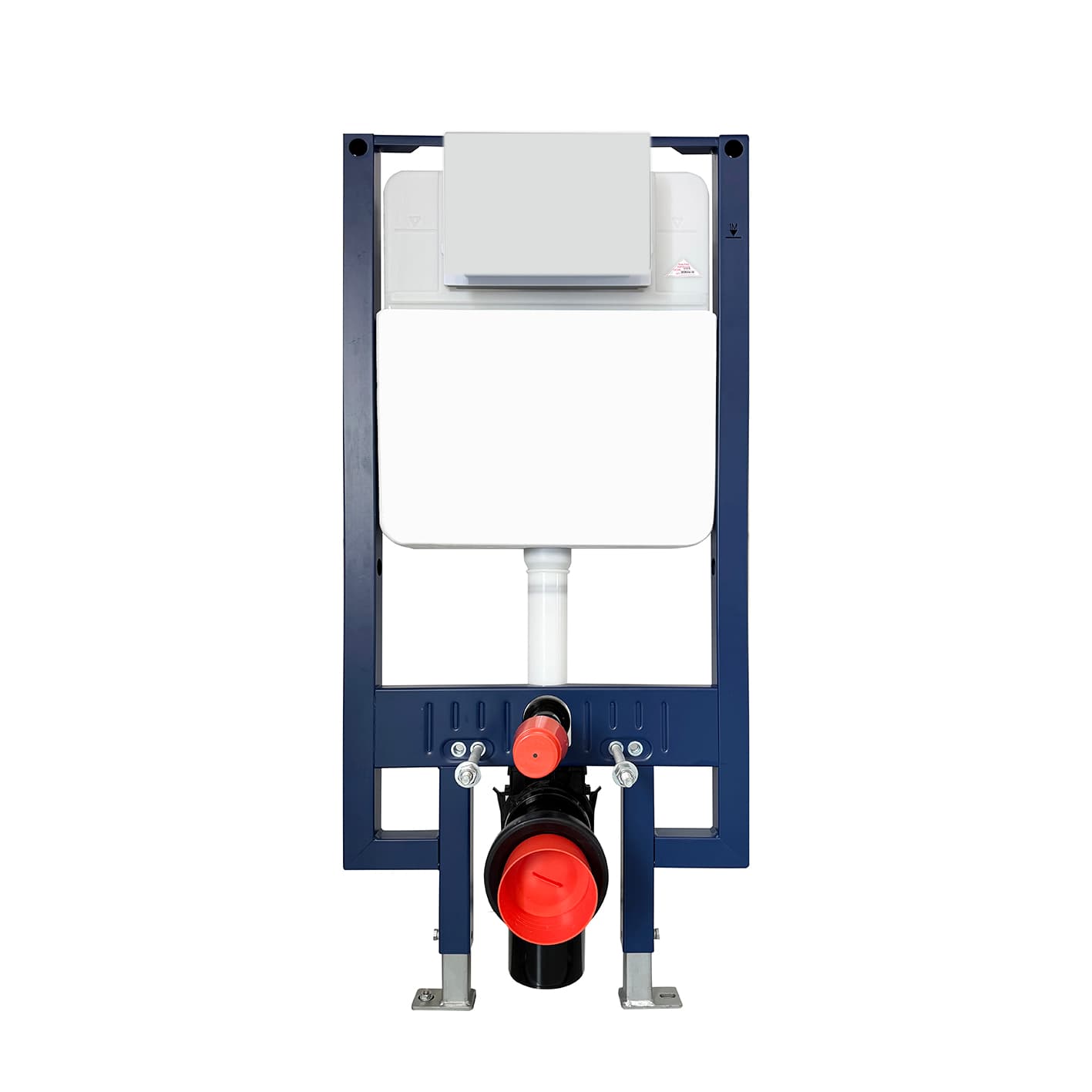

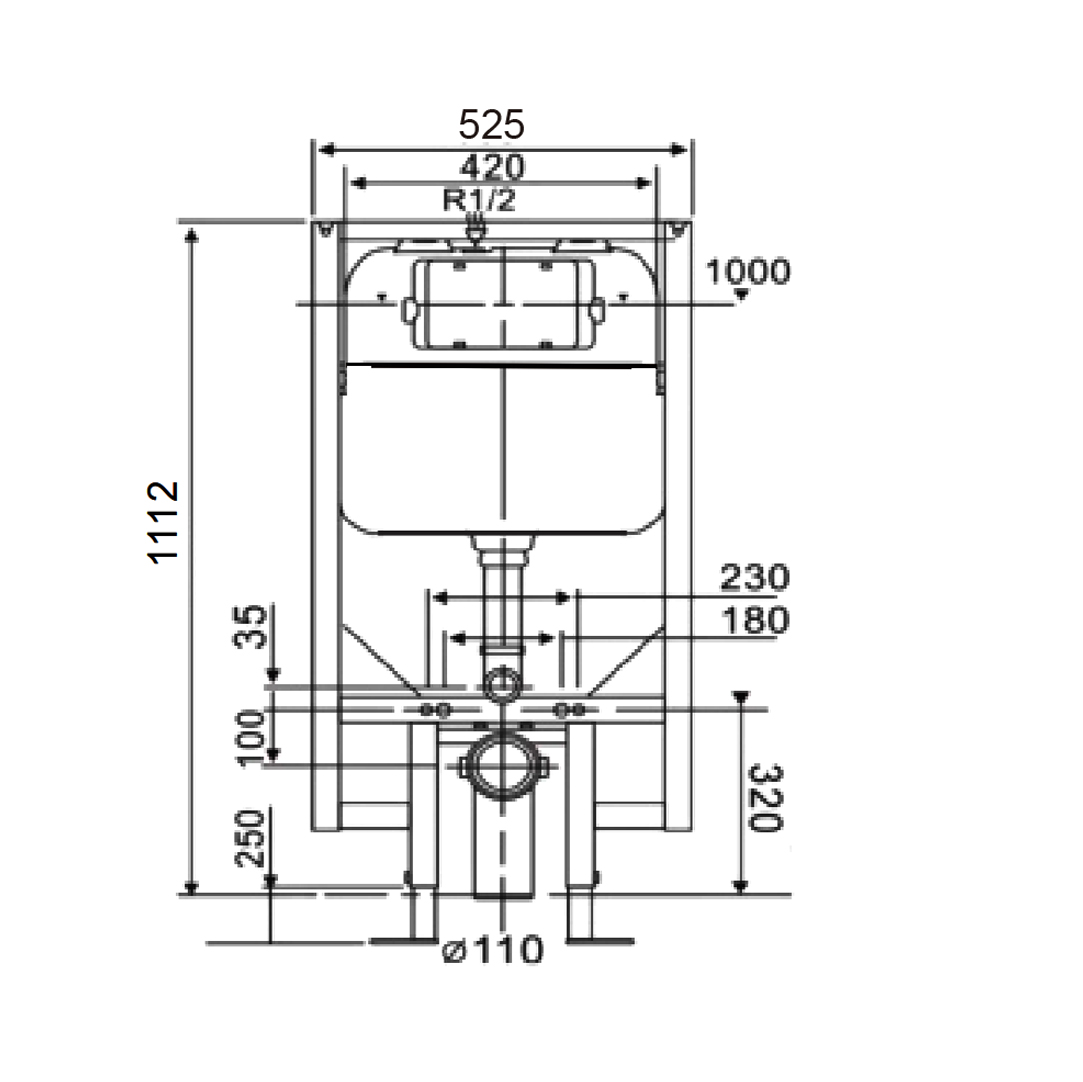

500x100x1112mmEnhanced type of concealed water tank with support structure
The high-precision molds and exquisite surface treatment provide GLY plastic series panels with morepossibilities for colision between shape and color.

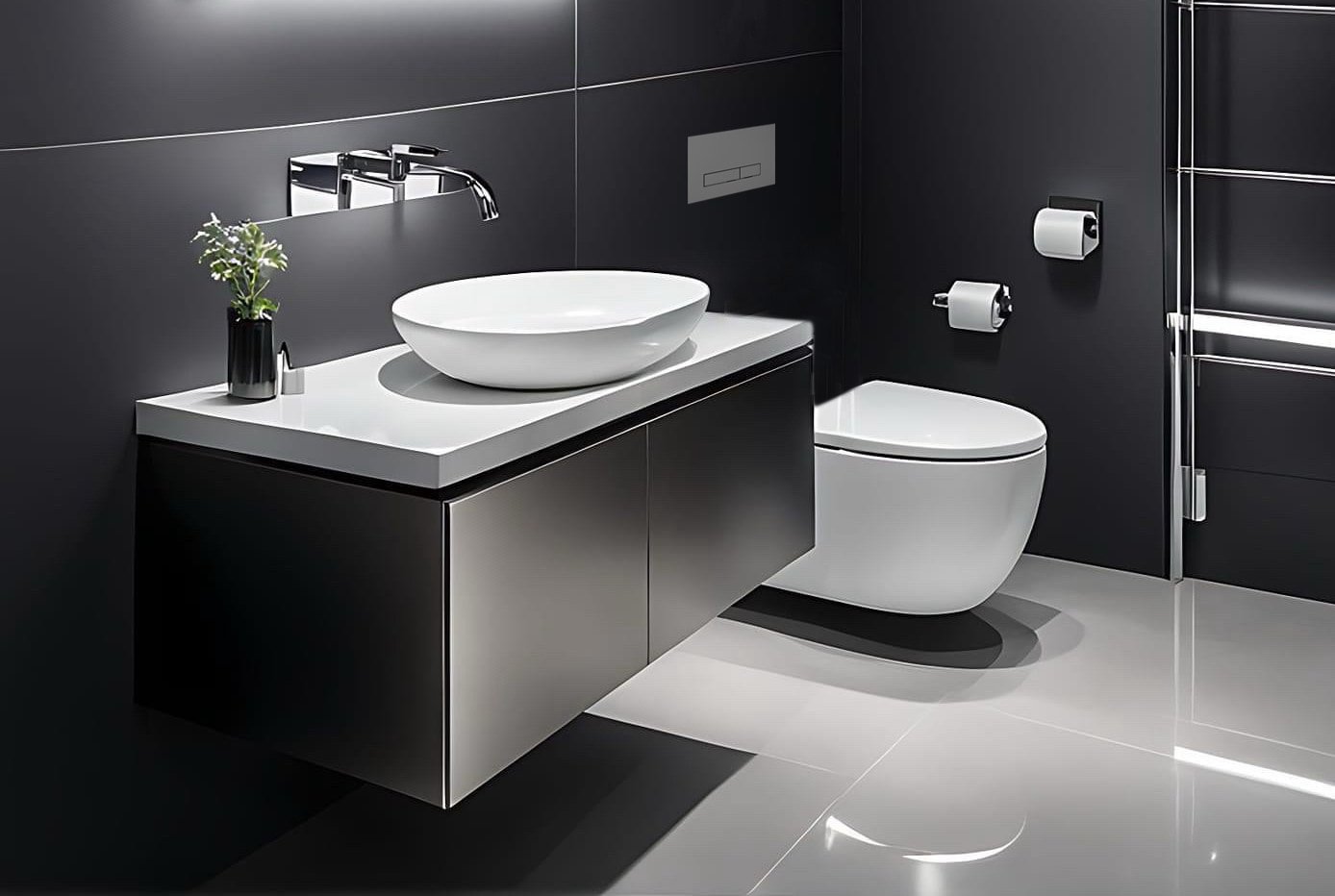

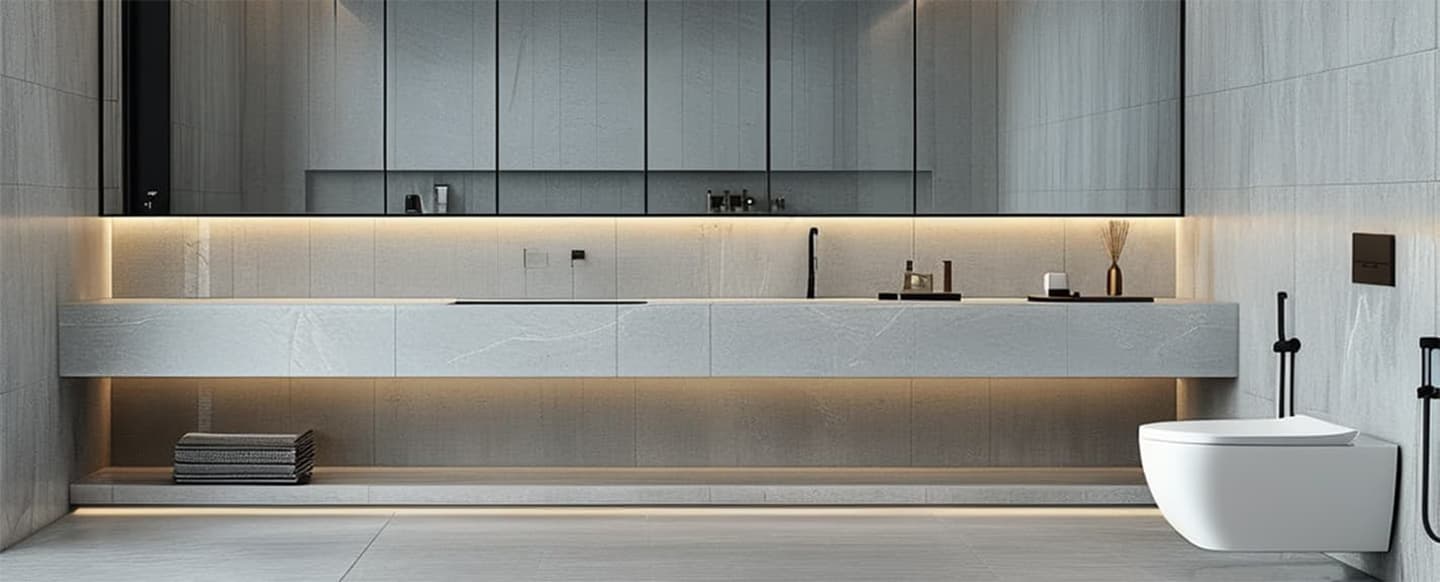

The water tank box can be installed inside the original or fake wallwith only the panel exposed, which is fashionable and beautiful.
Where is the application of the reinforced type of concealed water tank?

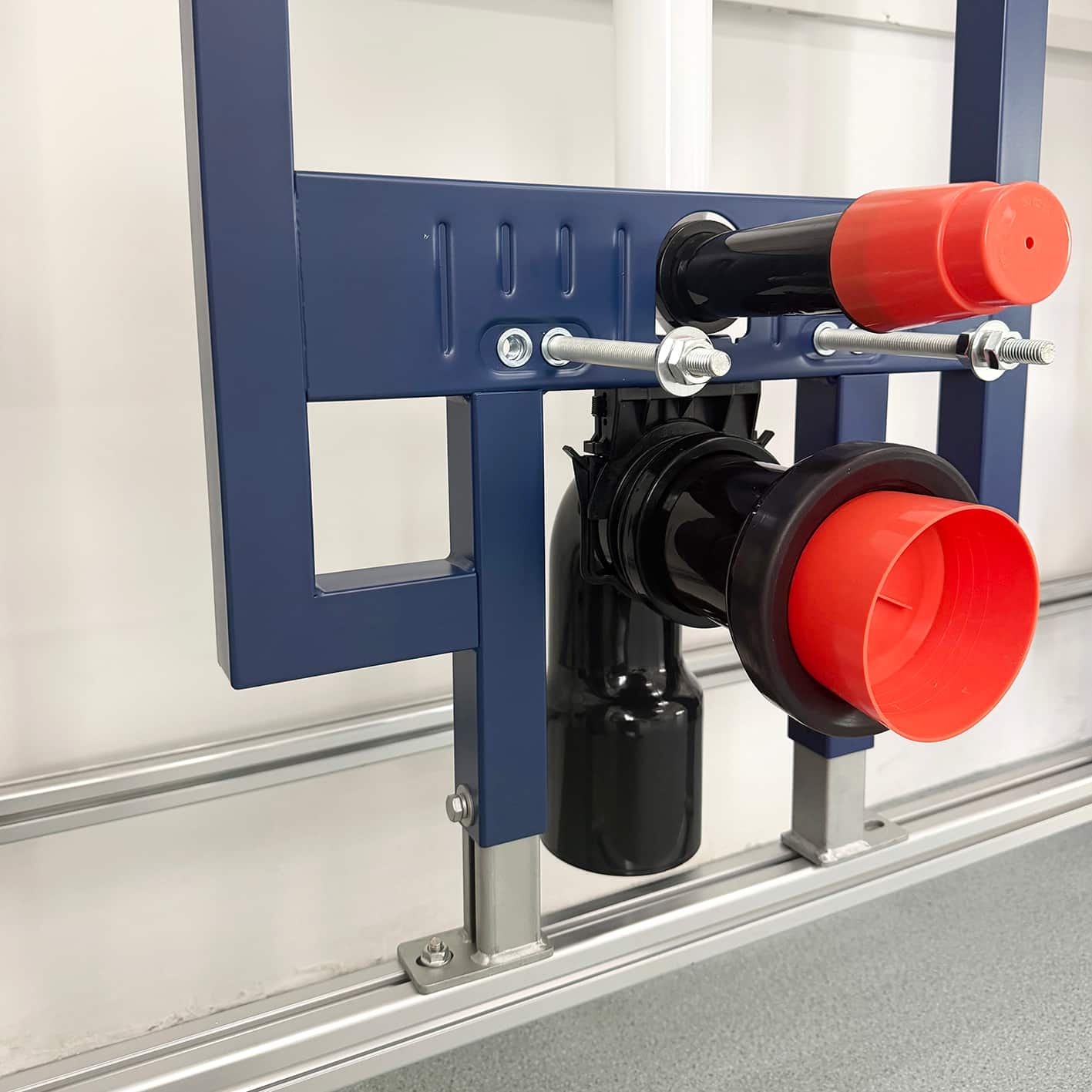

The reinforced-frame toilet water tanks is ideal for scenarios requiring high durability and space efficiency. Its 400kg load-bearing capacity suits wall-hung toilets in non-load-bearing walls, enabled by thickened brackets and self-supporting frames.
1.This system excels in commercial spaces (airports, shopping malls), high-traffic public facilities, and modern residential bathrooms where concealed installations are preferred.
2.The HDPE monobloc tank ensures leak-proof performance for over 50 years.
3. while accessible maintenance ports allow repairs without dismantling.
4. Particularly effective in irregular layouts and compact environments, it optimizes restroom space while maintaining structural integrity in both full-embedded and semi-embedded installations
To achieve more customized requirements for color craftsmanship
| Product name | toilet water tank | Tank Color | Blue&White |
| Brand Name | GOWLY | Model number | GLY-G11T |
| Application | Hotel, Office Building, Hospital, School, Mall, fit for one piece toilet, Toilet | Drainage mode | P-Trap 180mm |
| Frame Colour | Blue, Grey, Red, White,Black…… | Certification | ISO9001, CE |
| Panel Color | White/blue/grey…… | Commercial / Residential | Commercial/Residential |
| Surface | Chrome | Included | Seat Cover, Flush Valve |
| Material | ABS & POM | Style | Minimalist,Modern |
| Flush Valve Type | Hand Control | Feature | full flush & half flush available |

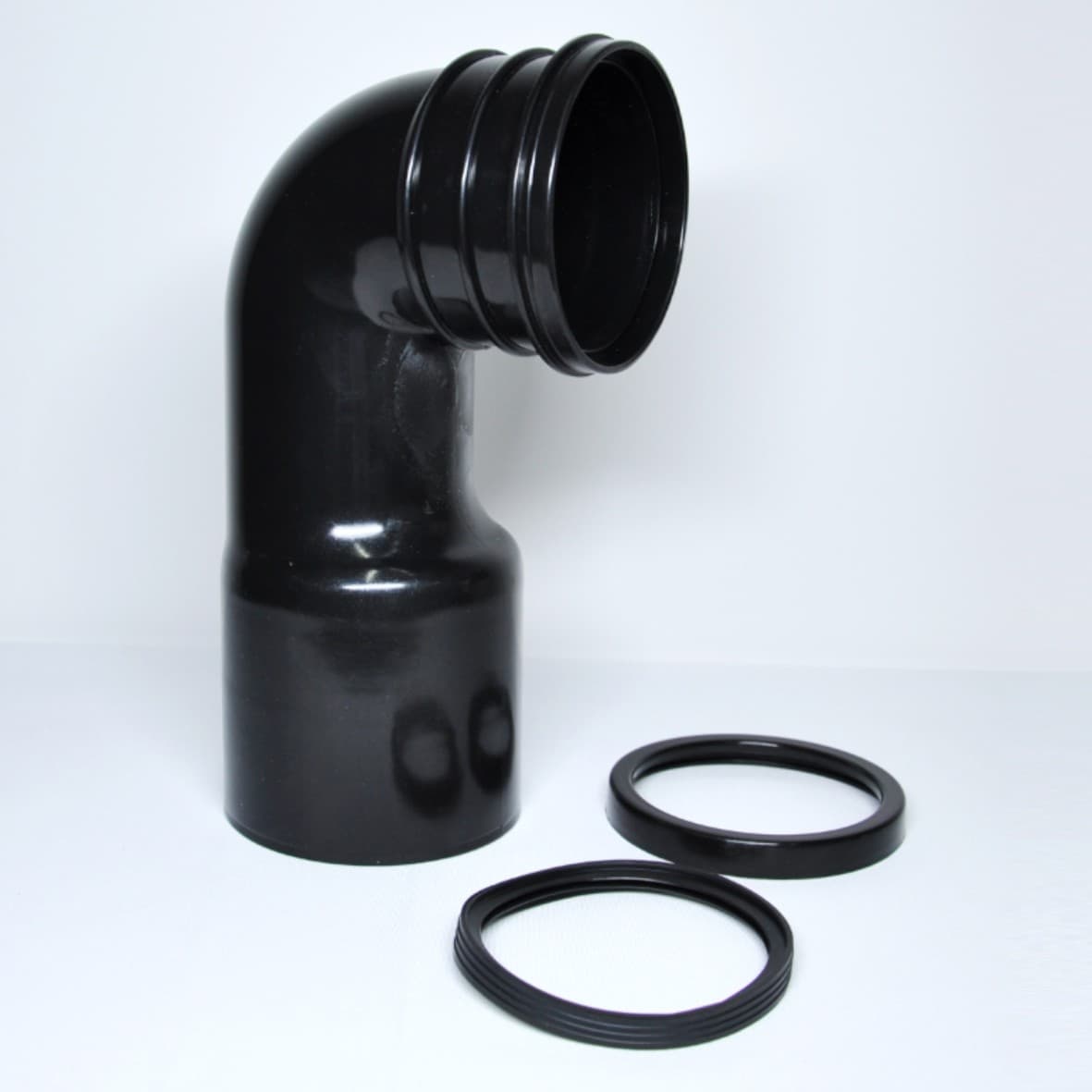

| Flush speed | >2.4L/s | Flush pipe | 90mm+110mm |
| Flushing Type | Dual Flush | Manufacturer Warranty | 5 year limited warranty |
| Packaging cartons | Kraft paper 5-ply | Packaging Details | Carton packaging |
| Package Size | 525x100x1112mm | Gross weight | 15.8kgs |
| Delivery time | 25 days | Customizable | YES |
| Customizable | YES | Payment Term | T/T 30% Deposit |
| Total number of employees | 125 | Button | multiple designs of buttons for choice |
| Bracket bearing | 400 kgs | Shipping terms | EXW, FOB Guangzhou,CIF |
| Place of Origin | Foshan Guangdong | Loading QTY | 20GP/344sets, 40HQ/836sets |

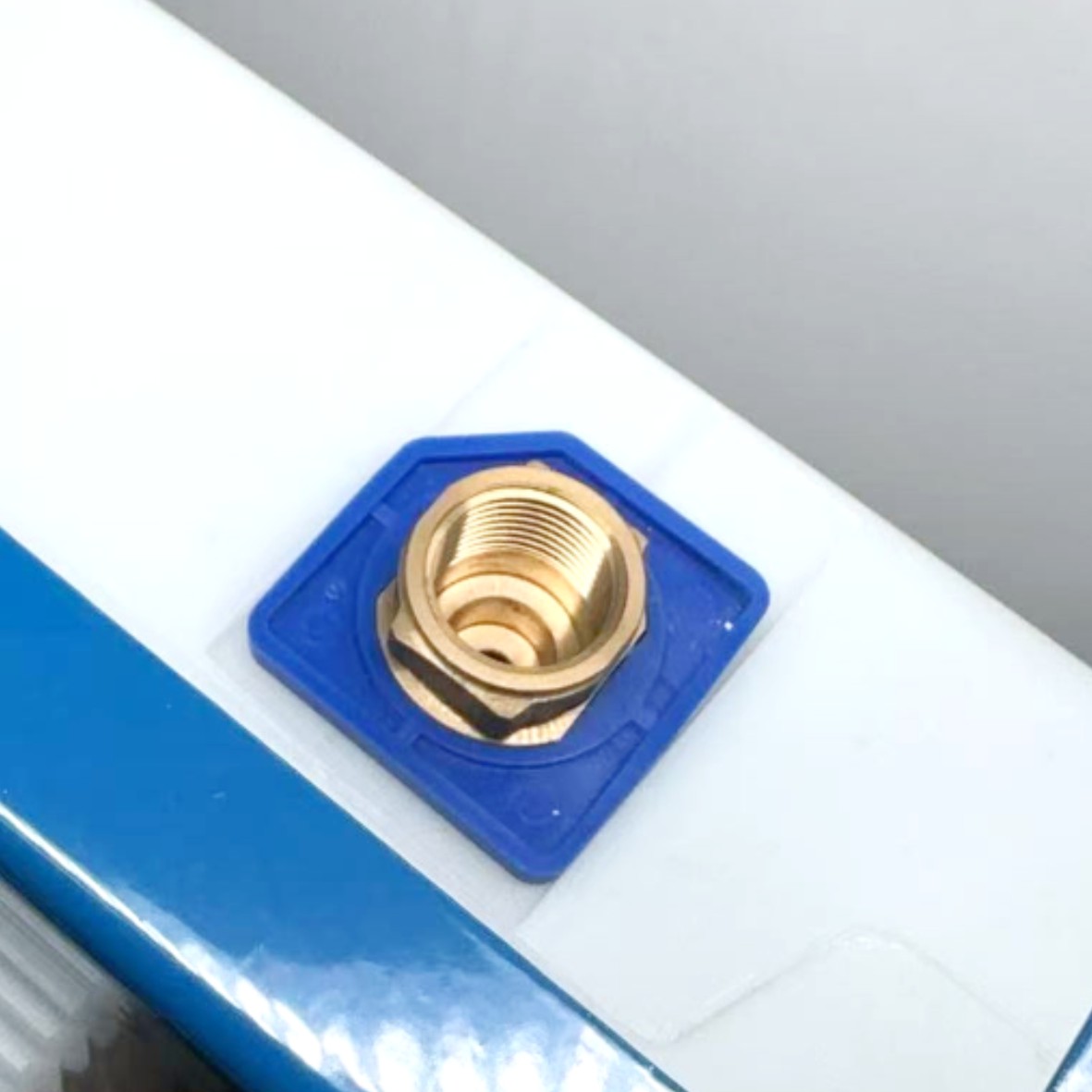

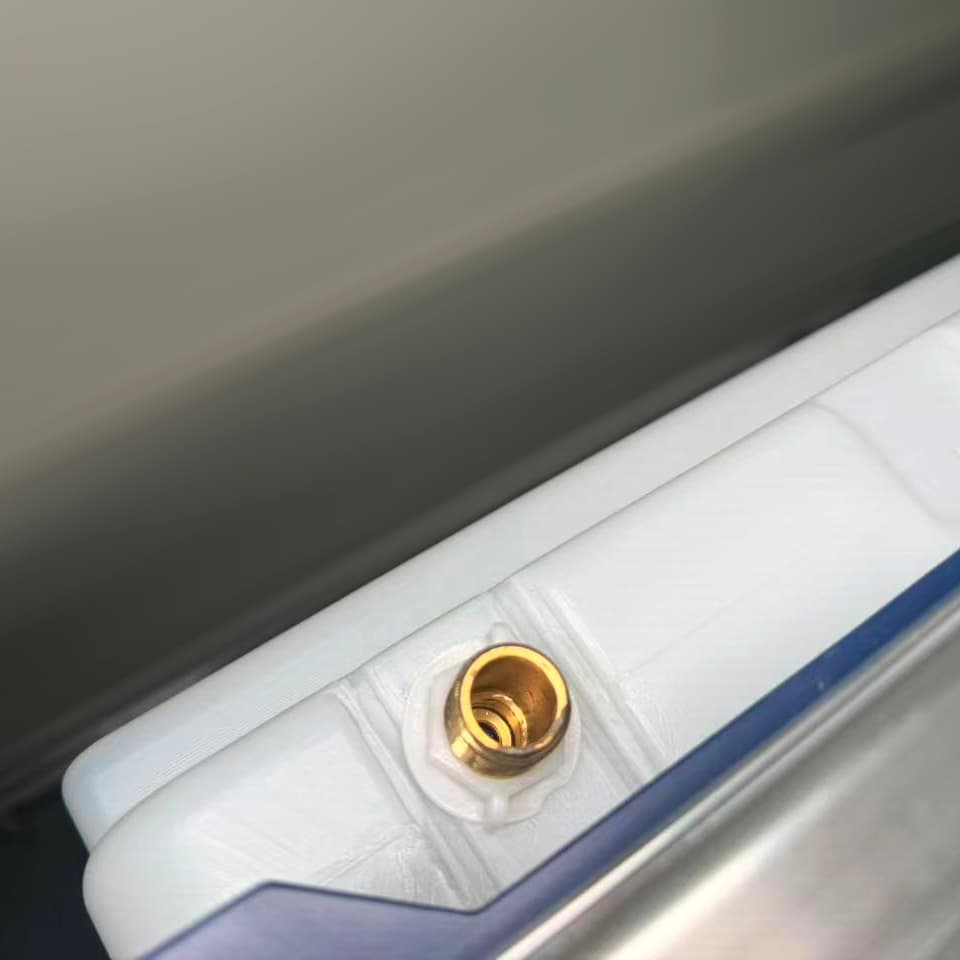

| Business Type | Manufacturers | Water Supply | Connect at the top |
OEM Customization Service:
The toilet water tank bracket can be customized in different colors according to customer needs;
after obtaining brand authorization, the water tank panel and water tank foam can be printed with the customer's logo.

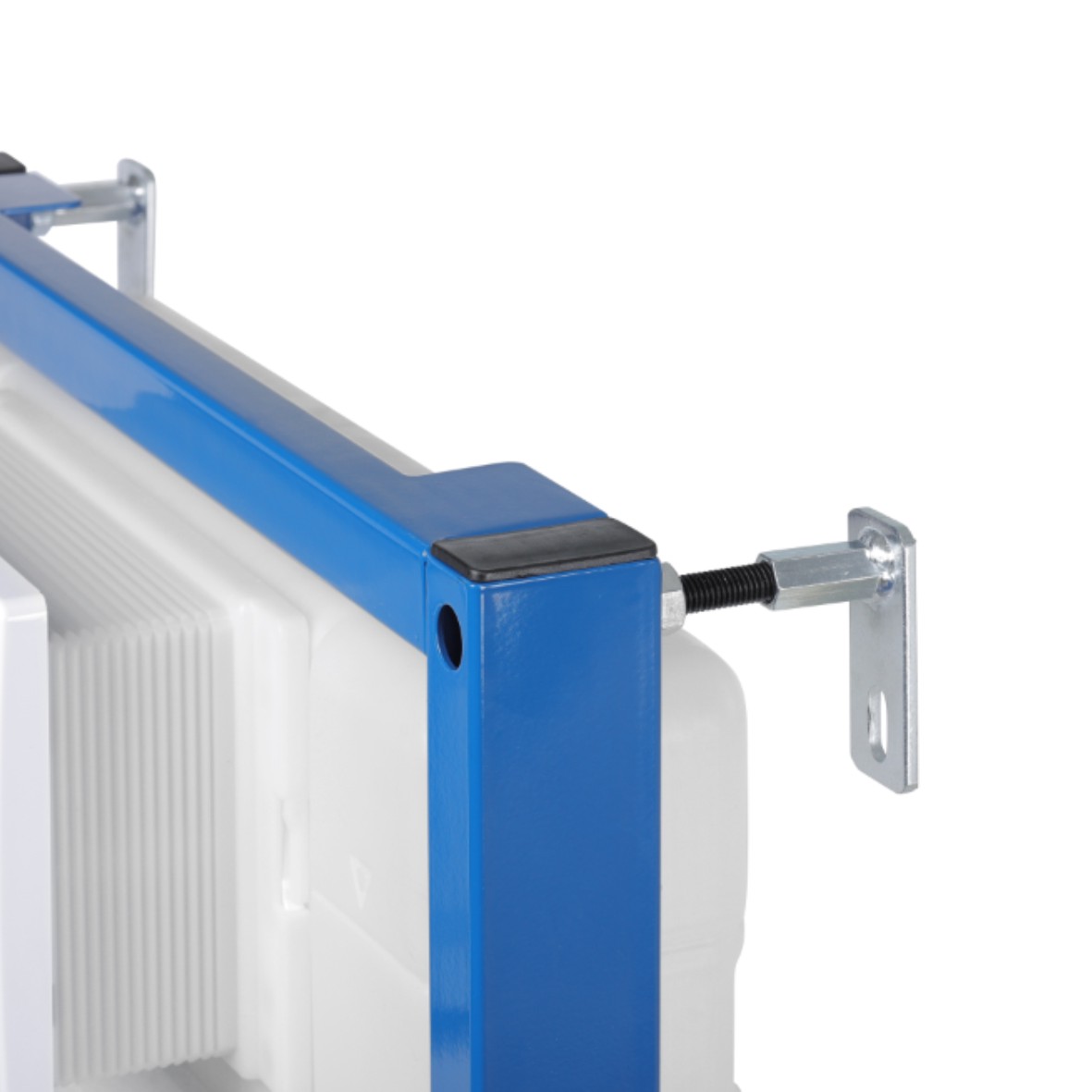

Frame specifications: 40x40mm or 50x30mm

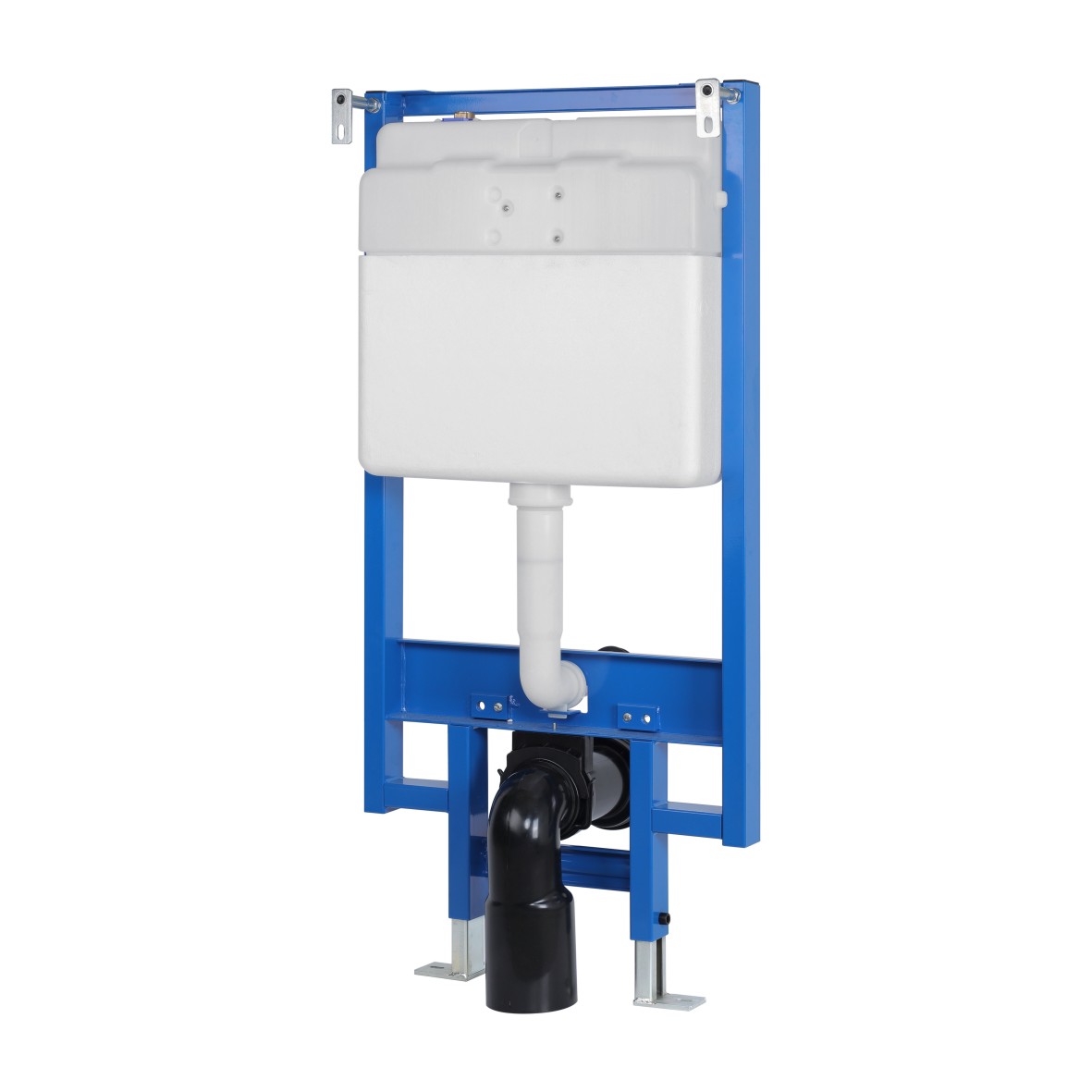

Hidden ultra-thin wall hanging with bracket toilet water tank
The main production and sales of concealed water tank, wall mounted water tank, hanging toilet, electric towel rack and so on.
Can be customized, tank thickness of 80mm\100mm.
Can be freely used with the panel
Panel material: ABS, Stainless Steel, Glass
Panel size:245x165mm
OEM service：
We can provide OEM service and print the customer's logo on the foam of the toilet water tank .
Using high-quality new HDPE raw materials for one-time blow molding, it is resistant to low temperature, aging, corrosion, strong toughness, and cracking, and has a service life of more than 50 years.
The water inlet valve and the drain valve are guaranteed for 5 years;

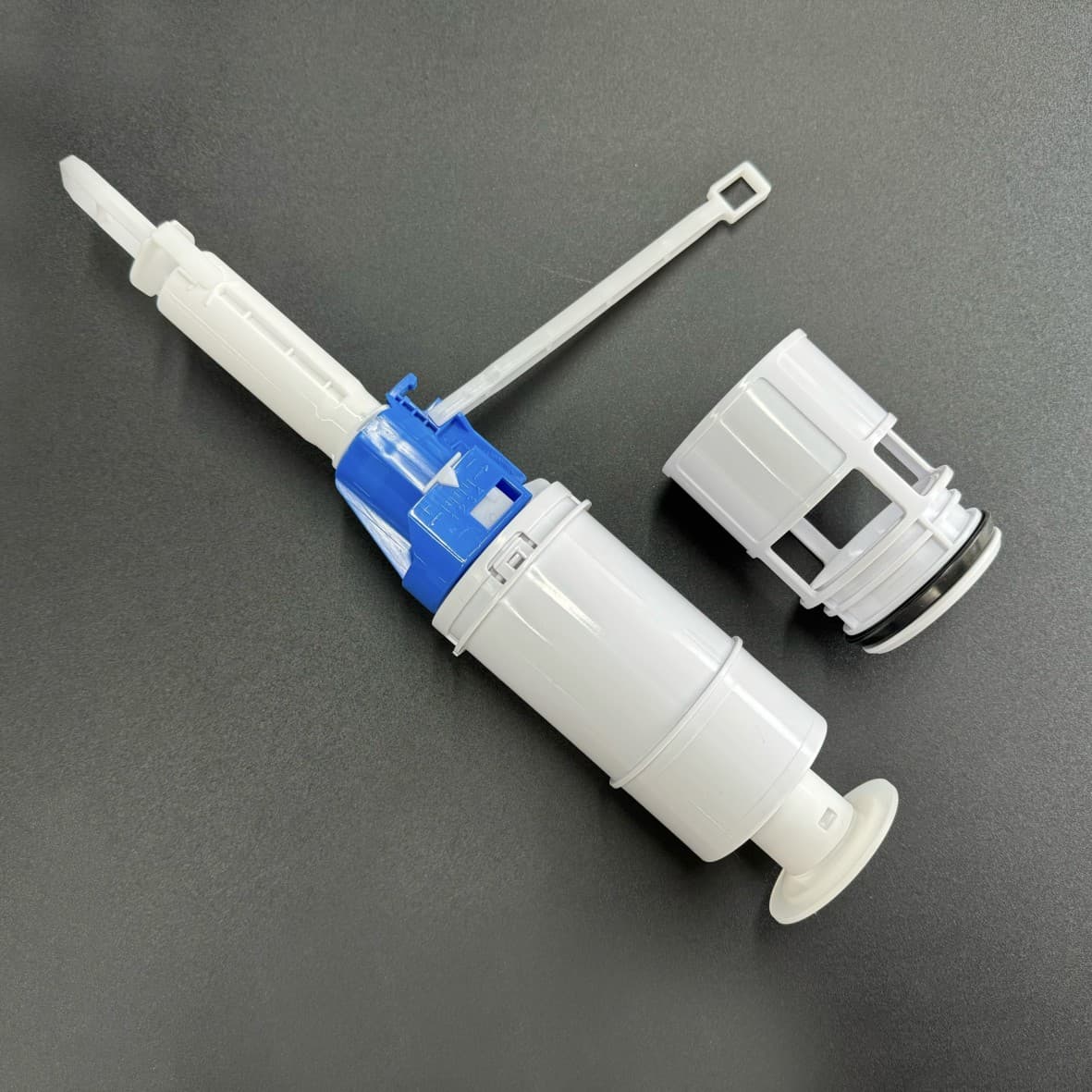

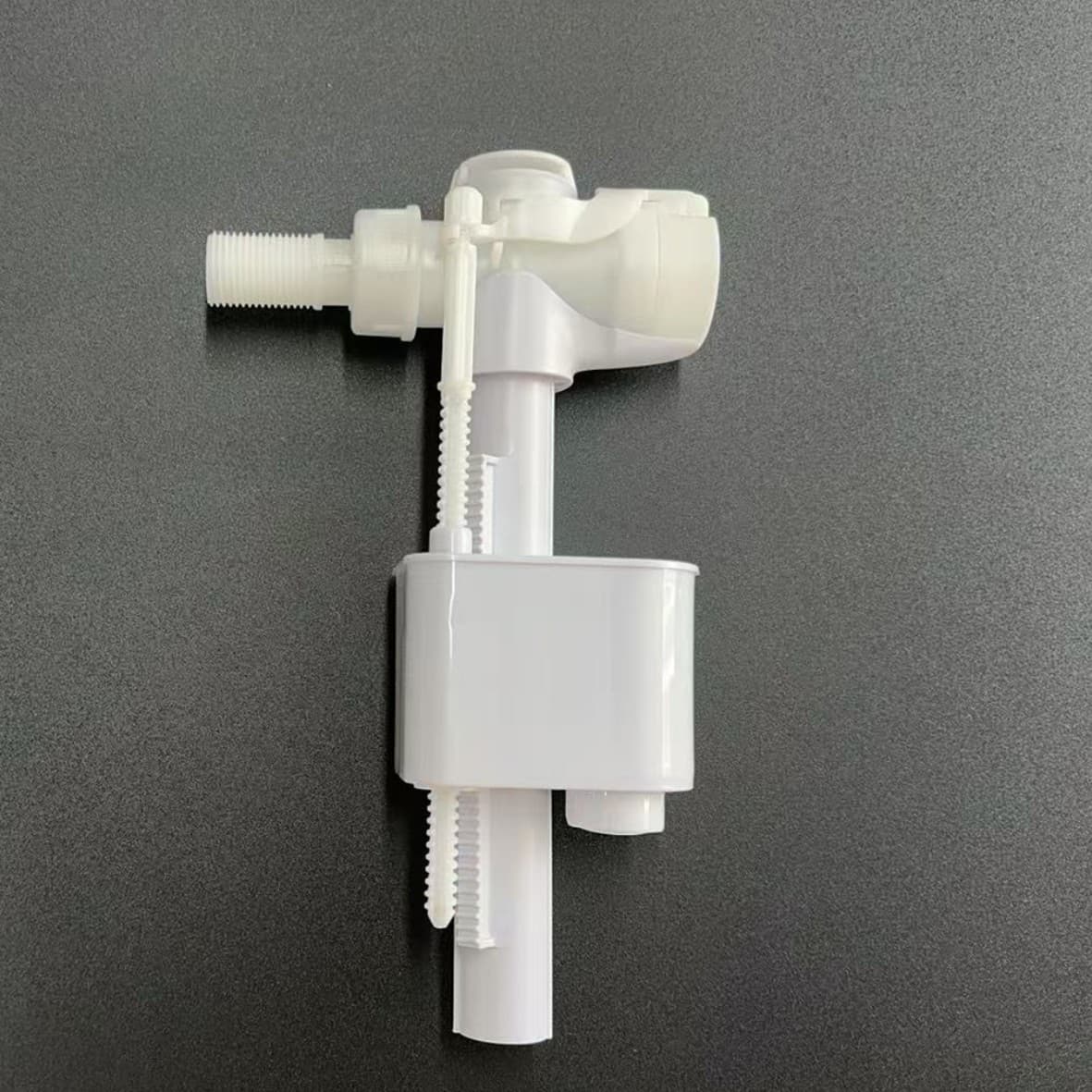

The inlet and drainage valve, which is independently developed and produced has a high fit with various parts and components. After repeated optimizationand testing, it is suitable for various use environments.
